Vehicle Communication Platform For Cooperative ITS V2X Middleware Platform

HITACHI provides a Vehicle to X (V2X) platform to enable safer and greener driving assistance and to increase driving comfort, by analyzing in real-time surrounding information and by providing enhanced services.

Do you have following problems?



  • We want to integrate in our vehicular systems a dedicated communication stack.

    Hitachi provides a complete platform including message specification for V2X communication.

  • We want our vehicles to communicate each other all around the world.

    Our middleware is compliant with the different standard specifications used in each region.

  • We want to enhance automotive safety and enable autonomous driving.

    Vehicle detailed information can be transmitted using V2X communication.
    V2X can be applied to a wide range of field varying from driving assistance system to autonomous driving.

V2X Middleware Platform - Concept

Exchanging information among humans, vehicles, and roads allows ITS (Intelligent Transport Systems) for preventing road-related problems such as accidents or traffic jams or pollution.
Especially the combination of cooperative ITS, ICT and automotive control technology, is the enabling factor for smart, green and safe driving.
Hitachi's V2X Middleware Platform provides a Vehicle-to-Vehicle and Vehicle-to-Infrastructure communication platform. It enables real-time surrounding information analysis coming via wireless communication, enhancing the capacity of on-board data fusion side of other sensors.

V2X Middleware Platform - Characteristics / Features

Middleware/Device Control

Lightweight, fast, and high functionality next generation cooperative vehicle communication platform, suitable for embedded systems, car navigation, cellular phone, digital consumer electronics etc.

It is possible to apply your system globally in compliant with European, American, and Japanese Standard.

Suitable for embedded environments

Lightweight, Compact implementation for embedded system

Support for multiple OS

Support for POSIX compliant system including RTOS

Support CPU

ARM, Intel(x86), etc.

Support for multiple H/W

Support for IEEE802.11p or ARIB STD-T109 compliant H/W

Compliant with Standard

  • ETSI ITS standard
  • IEEE 1609.X standard
  • SAE standard
  • ITS Connect standard

Field Experience

  • ETSI Plugtests (V2X interoperability + specification compliance tests)
  • USDOT PlugFest (V2X interoperability + specification compliance tests)
  • Field Trial Experience : DriveC2X/SCORE@F/Autonet2030
    * Hitachi contributes to the standardization of the V2X standard in ETSI TC ITS and C2C-CC.


Making use of "V2X Middleware Platform" enables your system to communicate with other vehicles and with infrastructure minimizing the application development cost and improving maintainability and reliability.

Based on the V2X Middleware Core part, we provide the most suitable environment for your communication platform.

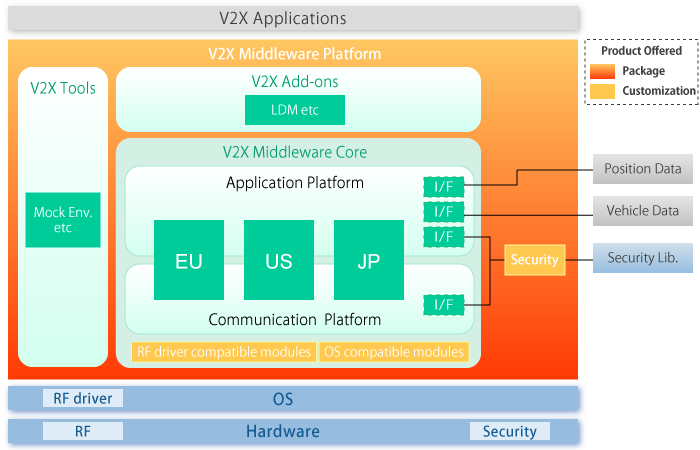

V2X Middleware Platform Product Scope

V2X Middleware Platform Product Scope

V2X Middleware Platform Main Products

V2X Middleware Core Vehicle-to-Vehicle and Vehicle-to-Infrastructure communication framework
V2X Add-ons Application components for added-value services using V2X Middleware Platform

Offer the following tools in V2X Middleware Platform support.

V2X Tools Suitable environments for verification, testing and application development

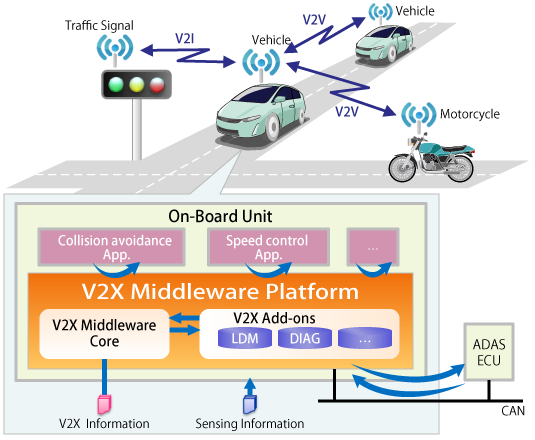

Product Installation Figure Image

Product Installation Figure


Individual quotation.

About V2X/C2X

V2X is the generic term to describe the communication technologies in the automotive domain which enable vehicles and infrastructure to talk each other.

V2X enables safer driving assistance since it allows to analyze surrounding information from other vehicles like position, speed, vehicle control information, etc.
and infrastructure information, e.g. traffic light, highway regulation, traffic information, etc.

This product meets eight criteria, energy conservation, resources saving, reusability, etc, defined by Hitachi Group's DfE (Design for Environment) Assessment.

V2X Middleware Platform enables green and safer driving assistance to analyze in real-time surrounding information leading to the traffic reduction.
